Heavy Duty Trailer Mover

Originally developed for a specific project in Sweden to enable pedestrians to launch and recover pleasure boats from a slipway, the Heavy Duty Trailer Mover has also now found customers in the manufacturing, military & ground handling sectors.

It may be fitted with a variety of tow and towing hitches / universal couplings and drop pin style hitches such as a 50mm Ball Hitch, NATO style tow hitch, pintle hitch or tractor hitch. When fitted with one of these design attachments, it becomes a general purpose pedestrian electric tug or tractor unit for towing industrial trailers and removes the need for ride-on tugs and tractor units that are generally much bigger and which also require driving licences to operate.

There are no exhaust fumes, handlebar vibration or, engine noise to consider when in operation and the key components in the machines are waterproof, enabling both indoor and outdoor operation.

Applications

Heavy Duty Trailer Mover Applications

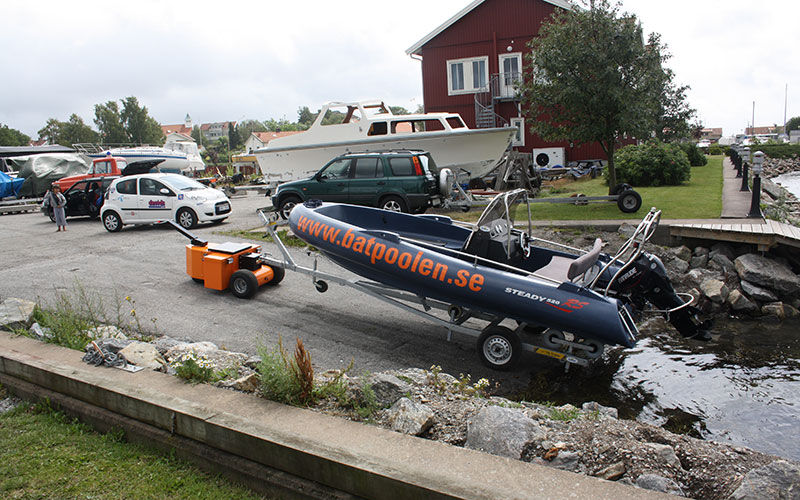

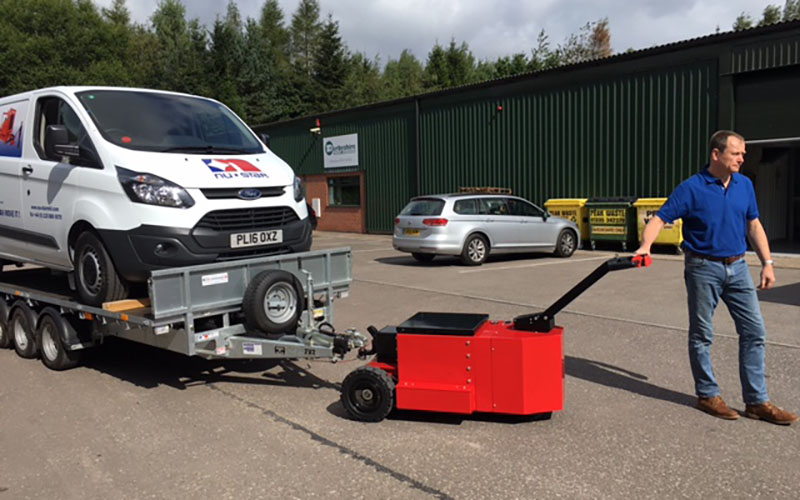

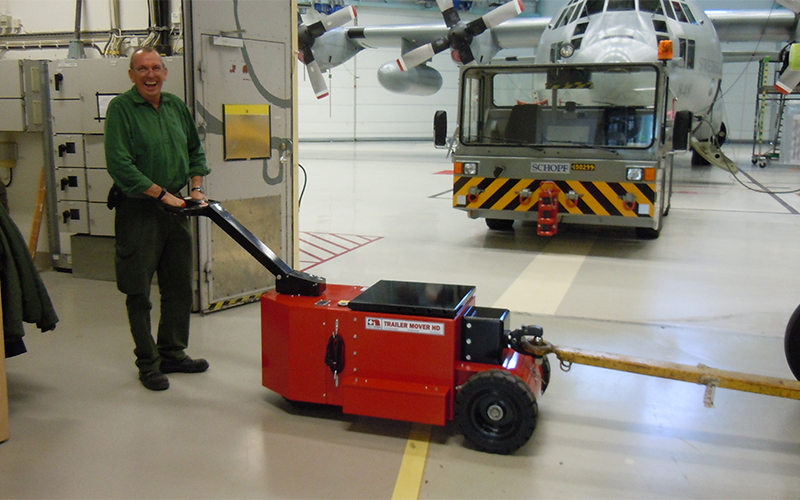

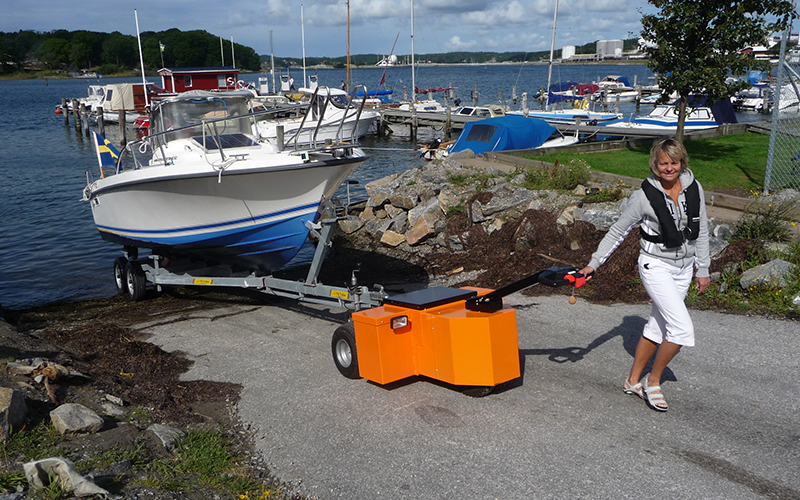

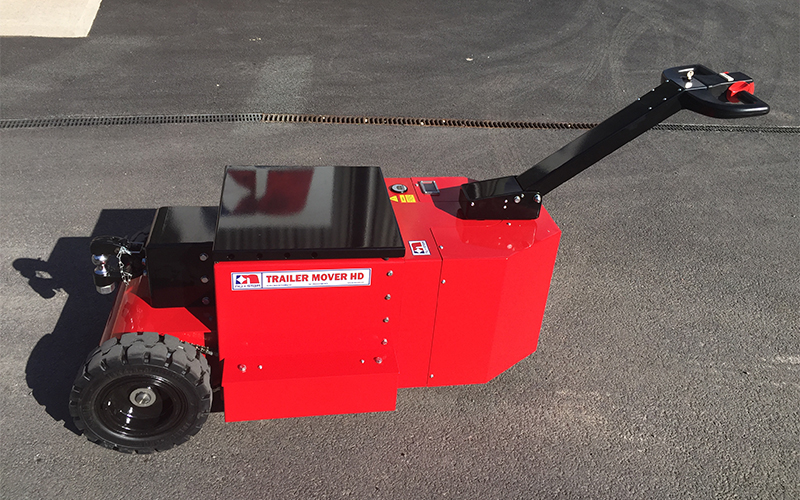

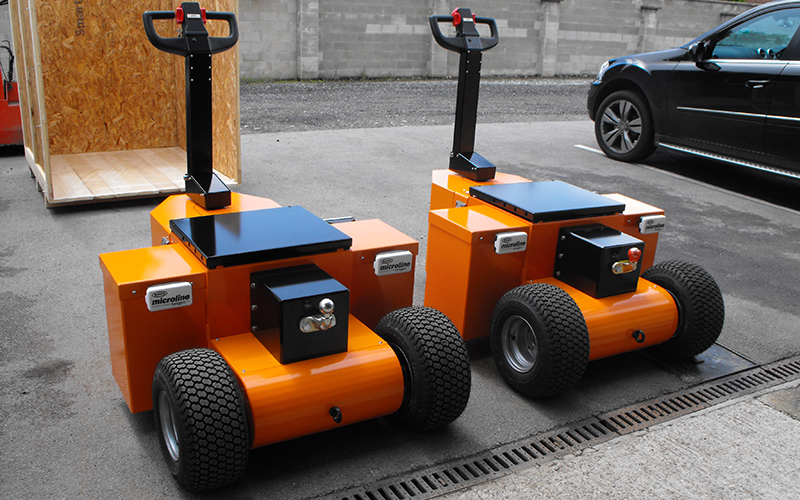

HD Trailer mover towing 2,000Kg boat trailer up slipway in Sweden Heavy Duty Trailer Movers with 50mm ball hitch ready for export HD Trailer Mover launching 1,000Kg boat trailer from slipway Using the HD Trailer Mover to move a 2,500Kg triple axle Ifor Williams trailer, loaded with Ford Transit van. Ground Support Equipment such as APU's, water and fuel bowsers and access steps can be towed inside the hangar using the HD Trailer Mover fitted with NATO towing hitch. HD Trailer Mover with NATO specification towing hitch for moving airport Ground Support Equipment

Specifications

Heavy Duty Trailer Mover Specifications

MotorĀ  1.5Kw, 36V DC with 200A programmable controller
Batteries 3xEM90AHr, sealed VRLA, Gel, IATA approved
Battery Charger On-Board, IP68, multi-input voltage, 3 x 10A output
Wheels/Tyres Foam-filled & puncture-proof
Braking Regenerative as standard
Other features Keyswitch off/on, variable throttle, Emergency Reverse, Horn, Battery gauge, main isolator fuse
Options Motion Bleeper, Strobe, Headlights, Electric winch, Stainless Steel, Electric lift for Ball Hitch, Electromagnetic brake, ATEX Zone 1
